WA Series
Ultrasonic Cleaner Separate Type

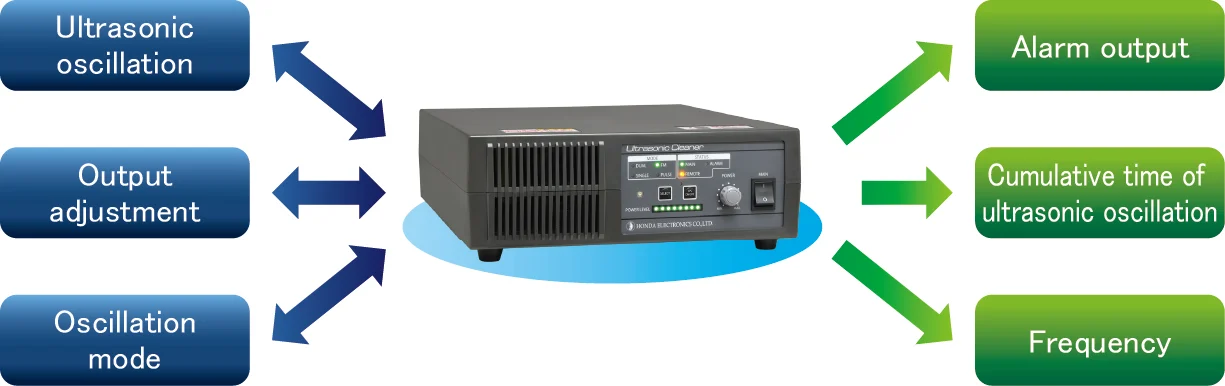

Communication functionality to support daily management

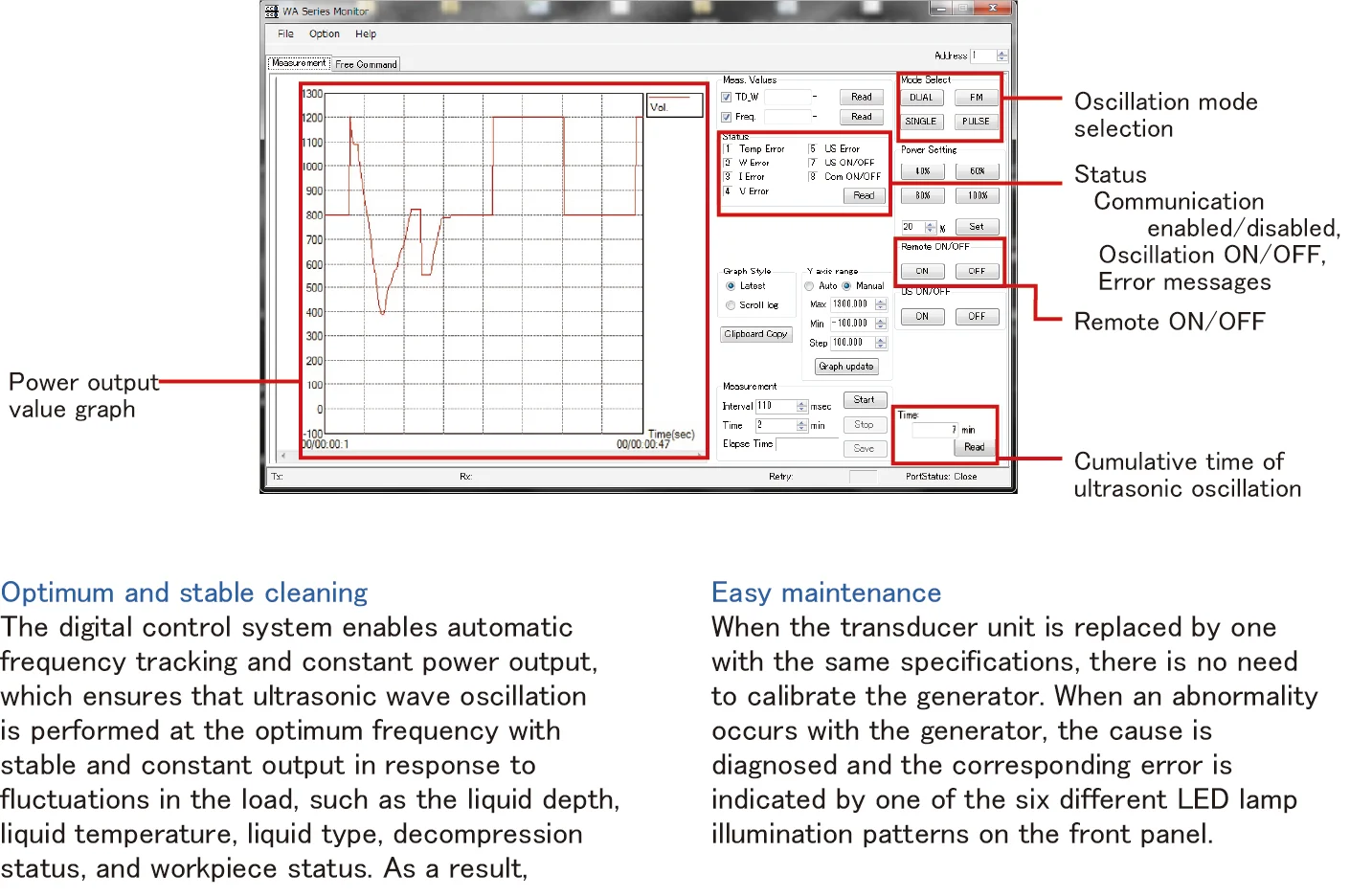

Equipped with RS485 communication function
- RS485 communication (MODBUS RTU) enables various settings and checking of operating status.
- Frequency and output power settings and oscillation status can be read out for preventive maintenance.
Optimal and Stable Cleaning
Automatic frequency tracking and constant power output by digital control system enable optimum cleaning by ultrasonic oscillation at optimum frequency and stable constant power output for various load fluctuations such as liquid depth, liquid temperature, liquid type, pressure reduction, and workpiece status.
4 oscillation modes for a wide range of contamination and various workpieces.
- Adjacent dual-frequency switching oscillation
Suppresses cavitation stoppage and propagates ultrasonic waves farther.
The pumping action makes it suitable for cleaning the inside of small tubes and through-hole substrates. - FM oscillation
Eliminates unevenness in cleaning by moving the position of standing waves due to frequency modulation.
Damage to the workpiece is reduced by changing the position of cavitation generation. - Single frequency oscillation
Powerful cavitation is generated, suitable for cleaning persistent dirt. - Pulse oscillation
Single-frequency output modulated intermittent oscillation is effective for soft cleaning and degassing promotion.
Improved maintainability
The auto-tuning function eliminates the need for oscillator adjustment when replacing a transducer unit of the same specifications.
When an abnormality occurs in the oscillator, ultrasonic oscillation is safely stopped, the cause of the abnormality is diagnosed, and six types of abnormalities are identified and indicated by the lighting patterns of the lamps on the front panel. This is effective in clarifying the cause of the trouble and quickly resolving it.
Generator
| Model | WA-600-28T | WA-600-40T | WA-1200-28T | WA-1200-40T |
|---|---|---|---|---|
| Oscillation method | Adjacent dual-frequency switching oscillation (DUAL) FM oscillation (FM) Single frequency oscillation (SINGLE) Pulse oscillation (PULSE) | Adjacent dual-frequency switching oscillation (DUAL) FM oscillation (FM) Single frequency oscillation (SINGLE) Pulse oscillation (PULSE) |
||
| Rated output DUAL/FM | 400W | 400W | 800W | 800W |
| Rated output SINGLE | 600W | 600W | 1200W | 1200W |
| Rated output PULSE | MAX 600W | MAX 600W | MAX 1200W | MAX 1200W |
| Nominal oscillation frequency | 28kHz | 40kHz | 28kHz | 40kHz |
| Power input | Select from AC200V, 220V, 230V, 240V (when ordering) Single phase 50/60Hz 1200VA | Select from AC200V, 220V, 230V, 240V (when ordering) Single phase 50/60Hz 2400VA |
||
| Interface Analog output | 4-20mA current output | 4-20mA current output | ||
| Interface Contact output | 2 contacts Alarm output, oscillation detection output | 2 contacts Alarm output, oscillation detection output | ||
| Interface External drive input | Ultrasonic oscillation ON/OFF (contact input) | Ultrasonic oscillation ON/OFF (contact input) | ||
| Interface RS485 communication | MODBUS (RTU) protocol *1 | MODBUS (RTU) protocol *1 | MODBUS (RTU) protocol *1 | MODBUS (RTU) protocol *1 |
| External Dimensions WxDxHmm | 336ｘ400ｘ125 （Excluding protruding parts, including rubber feet） | 336ｘ400ｘ125 （Excluding protruding parts, including rubber feet） |
||
| Weight | 6kg | 6kg | 6kg | 6kg |
- DUAL/FM frequency modulation range: Center frequency ±1kHz
- Variable output range: 20-100
- Output indication: LED level indicator (corresponding to output)
- Ambient operating environment: Temperature: 5 to 40°C, humidity: 5 to 80% (no condensation)
- Power cable length: 3.5 m
- Optional accessory: Crystal oscillator connection terminal block
*1 Various settings and operating status can be checked via RS485 communication.
Transducer Unit
N Type ｜ Immersible type
| Model | N06-28A | N06-40A | N12-28A | N12-40A |
|---|---|---|---|---|
| Generator Model No. | WA-600-28T | WA-600-40T | WA-1200-28T | WA-1200-40T |
| Maximum allowable input | 600W | 600W | 1200W | 1200W |
| Nominal oscillation frequency | 28kHz | 40kHz | 28kHz | 40kHz |
| Effective cleaning area | 350ｘ200 | 350ｘ200 | 420ｘ300 | 420ｘ300 |
| Dimensions WxDxHm Excluding protruding parts） | 350ｘ200ｘ100 | 350x200x75 | 420x300x100 | 420x300x75 |
| Material | Case: SUS304 (SUS316L available upon special order) | Case: SUS304 (SUS316L available upon special order) | ||
| Weight | 14kg | 11kg | 18kg | 14kg |
- Liquid temperature range: 5 to 80°C
- Transducer: Bolt-clamped Langevin type transducer
- Transducer cable length: 2.5m (blade part 2m) + output cord 3.5m
F Type ｜ Vibration plate type
| Model | F06-28A | F06-40A | F12-28A | F12-40A |
|---|---|---|---|---|
| Generator Model No. | WA-600-28T | WA-600-40T | WA-1200-28T | WA-1200-40T |
| Maximum allowable input | 600W | 600W | 1200W | 1200W |
| Nominal oscillation frequency | 28kHz | 40kHz | 28kHz | 40kHz |
| Effective cleaning area | 350ｘ200 | 350ｘ200 | 420ｘ300 | 420ｘ300 |
| Dimensions WxDxHmm Excluding protruding parts） | 390ｘ240ｘ83 t=3㎜ | 390x240x57 t=3㎜ | 460x340x83 t=3㎜ | 460x340x57 t=3㎜ |
| Material | Plate: SUS304 (SUS316L available by special order) Packing: EPDM t=3mm (Viton, etc. available by special order) | Plate: SUS304 (SUS316L available by special order) Packing: EPDM t=3mm (Viton, etc. available by special order) |
||
| Weight | 10kg | 8kg | 16kg | 13kg |
- Liquid temperature range: 5 to 100°C
- Transducer: Bolt-clamped Langevin type transducer
- Transducer cable length: 3.5m + output cord 3.5m
S Type ｜ Tank Type
| Model | S06-28A | S06-40A | S12-28A | S12-40A |
|---|---|---|---|---|
| Generator Model No. | WA-600-28T | WA-600-40T | WA-1200-28T | WA-1200-40T |
| Maximum allowable input | 600W | 600W | 1200W | 1200W |
| Nominal oscillation frequency | 28kHz | 40kHz | 28kHz | 40kHz |
| Effective cleaning area | 370x250 | 370x250 | 500x300 | 500x300 |
| Dimensions WxDxHmm Excluding protruding parts Externals | 422ｘ302ｘ405 (Including rubber feet） | 422ｘ302ｘ405 (Including rubber feet） | 550ｘ350ｘ402 (Including rubber feet） | 550ｘ350ｘ402 (Including rubber feet） |
| Dimensions WxDxHmm Excluding protruding parts Inside a tank | 370ｘ250ｘ250（23L) | 370ｘ250ｘ250（23L) | 500ｘ300ｘ224（35L) *1 | 500ｘ300ｘ224（35L) *1 |
| Material | Tank: SUS304 (SUS316L available by special order) | Tank: SUS304 (SUS316L available by special order) | ||
| Drain valve | Rc 1/2 | Rc 1/2 | Rc 3/4 | Rc 3/4 |
| Weight | 22kg | 19kg | 39kg | 34kg |
Accessories: Lid
- Liquid temperature range: 5 to 100°C
- Transducer: Bolt-clamped Langevin type transducer
- Transducer cable length: 3.5 m
- Optional accessory: Cleaning basket (KG10F, KG11T)
*1The basket is sloped for better drainage.
SH Type ｜ Tank Type
| Model | SH06-28A | SH06-40A | SH12-28A | SH12-40A |
|---|---|---|---|---|
| Generator Model No. | WA-600-28T | WA-600-40T | WA-1200-28T | WA-1200-40T |
| Maximum allowable input | 600W | 600W | 1200W | 1200W |
| Nominal oscillation frequency | 28kHz | 40kHz | 28kHz | 40kHz |
| Effective cleaning area | 370x250 | 370x250 | 500x300 | 500x300 |
| Heater | AC200V Single phase 50/60Hz 2kW | AC200V Single phase 50/60Hz 2kW | AC200V Single phase 50/60Hz 3kW | AC200V Single phase 50/60Hz 3kW |
| Dimensions WxDxHmm （Excluding protruding parts）Externals | 580ｘ310ｘ406 (Including rubber feet） | 580ｘ310ｘ406 (Including rubber feet） | 710ｘ360ｘ405 (Including rubber feet） | 710ｘ360ｘ405 (Including rubber feet） |
| Dimensions WxDxHmm （Excluding protruding parts）Inside a Tank | 370ｘ250ｘ250（23L) | 370ｘ250ｘ250（23L) | 500ｘ300ｘ224（35L) *1 | 500ｘ300ｘ224（35L) *1 |
| Material | Tank: SUS304 (SUS316L available by special order) | Tank: SUS304 (SUS316L available by special order) | ||
| Drain valve | Rc 1/2 | Rc 1/2 | Rc 3/4 | Rc 3/4 |
| Weight | 28kg | 25kg | 46kg | 40kg |
Accessories: Lid
